垫片

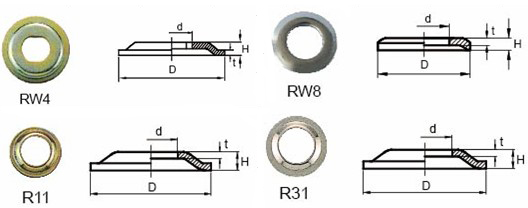

圆垫圈
型号 | D | d | H | t |
RW4 | 32 | 12.4 | 2.8 | 1.6 |
RW8 | 19 | 10.4 | 2.5 | 1.6 |
R11 | 16 | 8.1 | 2.9 | 1.6 |
R21 | 18 | 8.1 | 2.9 | 1.6 |
R31 | 21 | 10.4 | 2.9 | 1.6 |
R24 | 24 | 11 | 2.9 | 1.6 |
R27 | 27 | 12.4 | 3.2 | 1.6 |
RW11 | 23 | 12.4 | 3.2 | 1.6 |
桥型垫片
型号 | L | L1 | L2 | d | H |
B5 | 48 | 24 | 9.5 | 12.4 | 9.5 |
B6 | 54 | 28.5 | 14.5 | 12.4 | 9.5 |
B7 | 57 | 33 | 25 | 12.4 | 9.5 |
B8 | 70 | 51 | 32 | 18 | 6.5 |
BW1 | 48 | 24 | 9.5 | 12.4 | 7.1 |
BW2 | 54 | 28.5 | 14.5 | 12.4 | 7.1 |
BW3 | 57 | 33 | 25 | 12.4 | 7.1 |
