Off-the-road valves
TRSP4000
Large bore tube valve spud

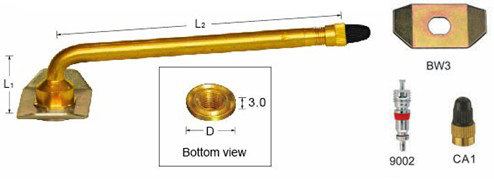

TR1075A
TRSP2 or TRSP1000 can be assembled
| Premier No. | D(mm) | L1(mm) | L2(mm) | α | Accessories | ||
| Core | Cap | Washer | |||||
| TR1075A | 22.5 | 24 | 76 | 86° | 9002 | CA1 | BW3 |
| TR1076A | 22.5 | 24 | 86 | 86° | 9002 | CA1 | BW3 |
| TR1077A | 22.5 | 24 | 105 | 86° | 9002 | CA1 | BW3 |
| TR1078A | 22.5 | 24 | 127 | 86° | 9002 | CA1 | BW3 |
| TR1175A | 22.5 | 24 | 115 | 86° | 9002 | CA1 | BW3 |
| TR1177A | 22.5 | 24 | 95 | 86° | 9002 | CA1 | BW3 |
| TR1179A | 22.5 | 24 | 141 | 86° | 9002 | CA1 | BW3 |

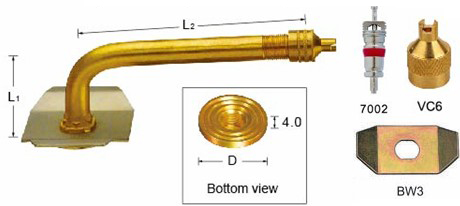

TRJ1175C
| Premier No. | D(mm) | L1(mm) | L2(mm) | α | Accessories | ||
| Core | Cap | Washer | |||||
| TRJ1076D | 32 | 56 | 59 | 90° | 7002 | VC6 | BW3 |
| TRJ1076E | 32 | 39 | 76 | 88° | 7002 | VC6 | BW3 |
| TRJ1175C | 32 | 39 | 105 | 88° | 7002 | VC6 | BW3 |
| TRJ1078B | 32 | 39 | 117 | 82° | 7002 | VC6 | BW3 |
| TRJ1179B | 32 | 39 | 133 | 88° | 7002 | VC6 | BW3 |

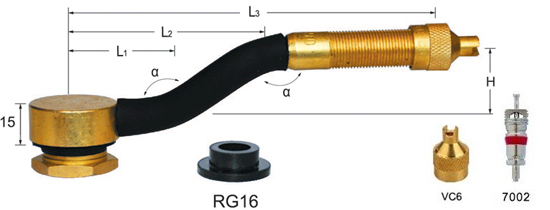

TRJ690
TRJ690
| Premier No. | L1（mm) | L2（mm) | L3(mm) | H（mm） | α | Rim Hole(mm) | Accessories | ||
| Valve Core | Valve Cap | Grommet | |||||||
| TRJ690 | 32 | 59 | 119 | 14 | 152° | 20.5 | 7002 | VC6/VC7 | RG16 |
| TRJ691 | 16 | ﹣ | 84 | ﹣ | ﹣ | 20.5 | 7002 | VC6/VC7 | RG16 |
| TRJ692 | 32 | 59 | 119 | 14 | 162° | 20.5 | 7002 | VC6/VC7 | RG16 |
| TRJ693 | 22 | 43 | 127 | 25 | 135° | 20.5 | 7002 | VC6/VC7 | RG16 |
| TRJ694 | 20 | ﹣ | 89 | ﹣ | ﹣ | 20.5 | 7002 | VC6/VC7 | RG16 |
| TRJ695 | 21 | 56 | 105 | 25 | 130° | 20.5 | 7002 | VC6/VC7 | RG16 |
| TRJ696 | 27 | 52 | 108 | 23 | 138° | 20.5 | 7002 | VC6/VC7 | RG16 |
