Truck & Bus valves/Clamp-in valves
 |

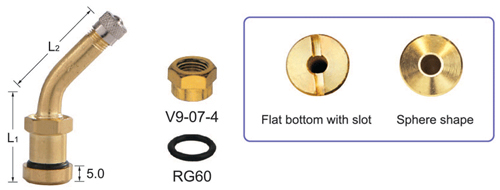

| V3-22-1 |
|
| Premier No. |
L1（mm) |
L2（mm) |
α |
Rim Hole(mm) |
Accessories |
| Valve Core |
Valve Cap |
Nut |
O-ring |
| V3-22-1 |
30 |
28 |
45° |
9.7 |
9002 |
CA2 |
V9-07-4 |
RG60 |
 |
| V3-12 |
|
| Premier No. |
L（mm) |
Rim Hole(mm) |
Accessories |
| Valve Core |
Valve Cap |
Nut |
O-ring |
| V3-12-1 |
40 |
15.7 |
9002 |
CA1 |
V9-13-1 |
V9-11-4 |
| V3-12-2 |
95 |
15.7 |
9002 |
CA1 |
V9-13-1 |
V9-11-4 |
 |
| V3-13 |
|
| Premier No. |
L1(mm) |
L2(mm) |
α |
Rim Hole(mm) |
Accessories |
| Valve Core |
Valve Cap |
Nut |
O-ring |
| V3-13-1 |
46.5 |
42.5 |
153° |
15.7 |
9002 |
CA1 |
V9-13-1 |
V9-11-4 |
| V3-13-2 |
30 |
79 |
126° |
15.7 |
9002 |
CA1 |
V9-13-1 |
V9-11-4 |
 |
| V3-14 |
|
| Premier No. |
L1（mm) |
L2（mm) |
L3（mm） |
α |
Rim Hole(mm) |
Accessories |
| Valve Core |
Valve Cap |
Nut |
O-ring |
| V3-14-1 |
25 |
21.5 |
24.5 |
147° |
15.7 |
9002 |
CA1 |
V9-13-1 |
V9-11-4 |
| V3-14-2 |
45 |
21.5 |
24.5 |
147° |
15.7 |
9002 |
CA1 |
V9-13-1 |
V9-11-4 |
| V3-14-3 |
37 |
21.5 |
24.5 |
147° |
15.7 |
9002 |
CA1 |
V9-13-1 |
V9-11-4 |
 |

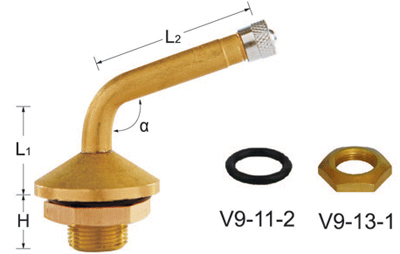

| V3-15 |
|
| Premier No. |
H（mm) |
L1（mm) |
L2（mm） |
α |
Rim Hole(mm) |
Accessories |
| Valve Core |
Valve Cap |
Nut |
O-ring |
| V3-15-1 |
14 |
22.5 |
44.5 |
110° |
20.5 |
9002 |
CA2 |
V9-13-1 |
V9-11-2 |
| V3-15-2 |
11 |
15.5 |
44.5 |
95° |
20.5 |
9002 |
CA2 |
V9-13-1 |
V9-11-2 |
 |

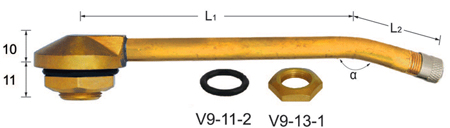

| V3-17 |
|
| Premier No. |
L1（mm) |
L2（mm) |
α |
Rim Hole(mm) |
Accessories |
| Valve Core |
Valve Cap |
Nut |
O-ring |
| V3-17-1 |
99 |
31.5 |
172° |
20.5 |
9002 |
CA2 |
V9-13-1 |
V9-11-2 |
| V3-17-2 |
116 |
31.5 |
172° |
20.5 |
9002 |
CA2 |
V9-13-1 |
V9-11-2 |
